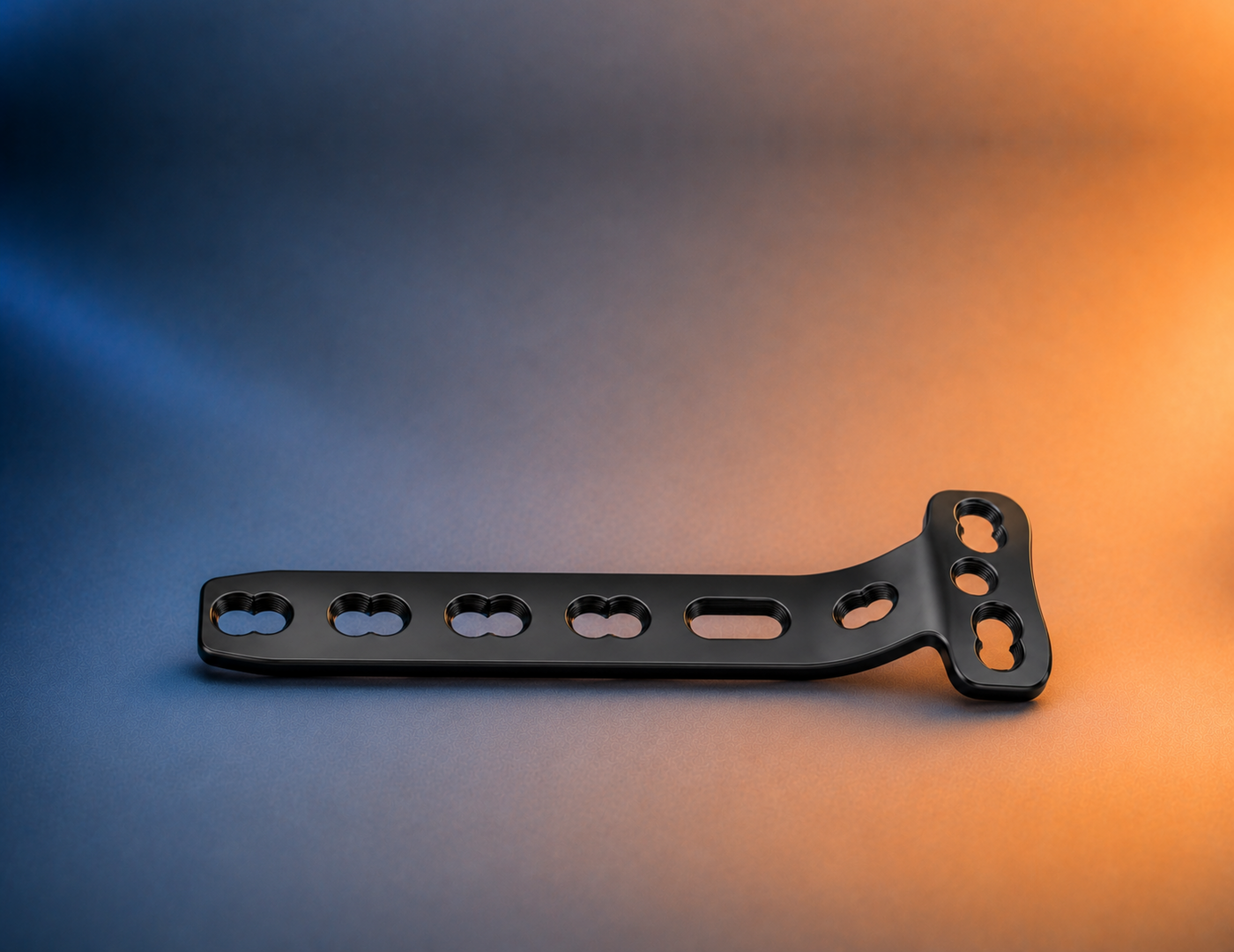

Ø5.0MM Proximal Lateral Tibia LCP

4.5/5.0MM Locking Plate Proximal Lateral Tibia, Right/Left is designed with divergent fixed-angled screw trajectories in the metaphyseal region and perpendicular fixed angled screw trajectories in the diaphysis providing improved biomechanical stability, essentially preventing any loss of reduction.

• Acute or chronic infections, either local or systemic.
• Local or systemic accurate or chronic inflaMMation.
• Serve muscular, nervous or vascular disease endangering the affected area.
• Defective bone structures, which would impede adequate anchoring of the implant.
• All associated diseases which could endanger the function and success of the implant.

• Plates available for Left and Right both direction

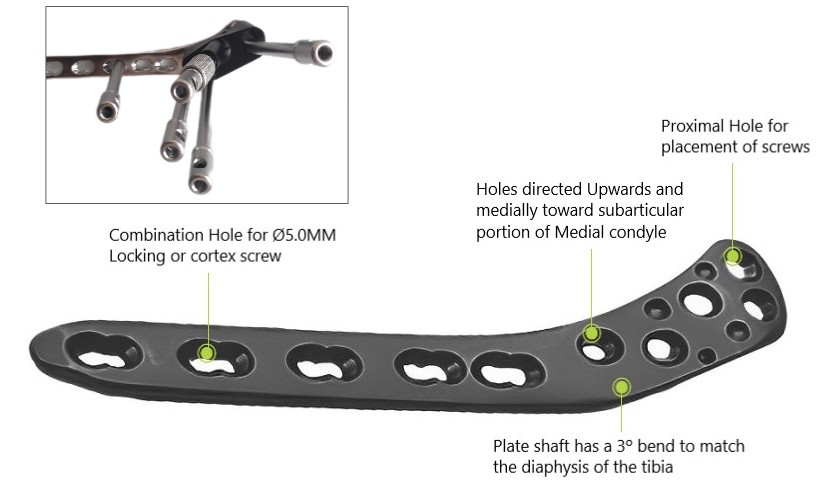

• Plate has combi holes and round holes. Combi holes allow fixation with locking screws in the threaded section and cortex screws in the dynamic compression unit section for compression.

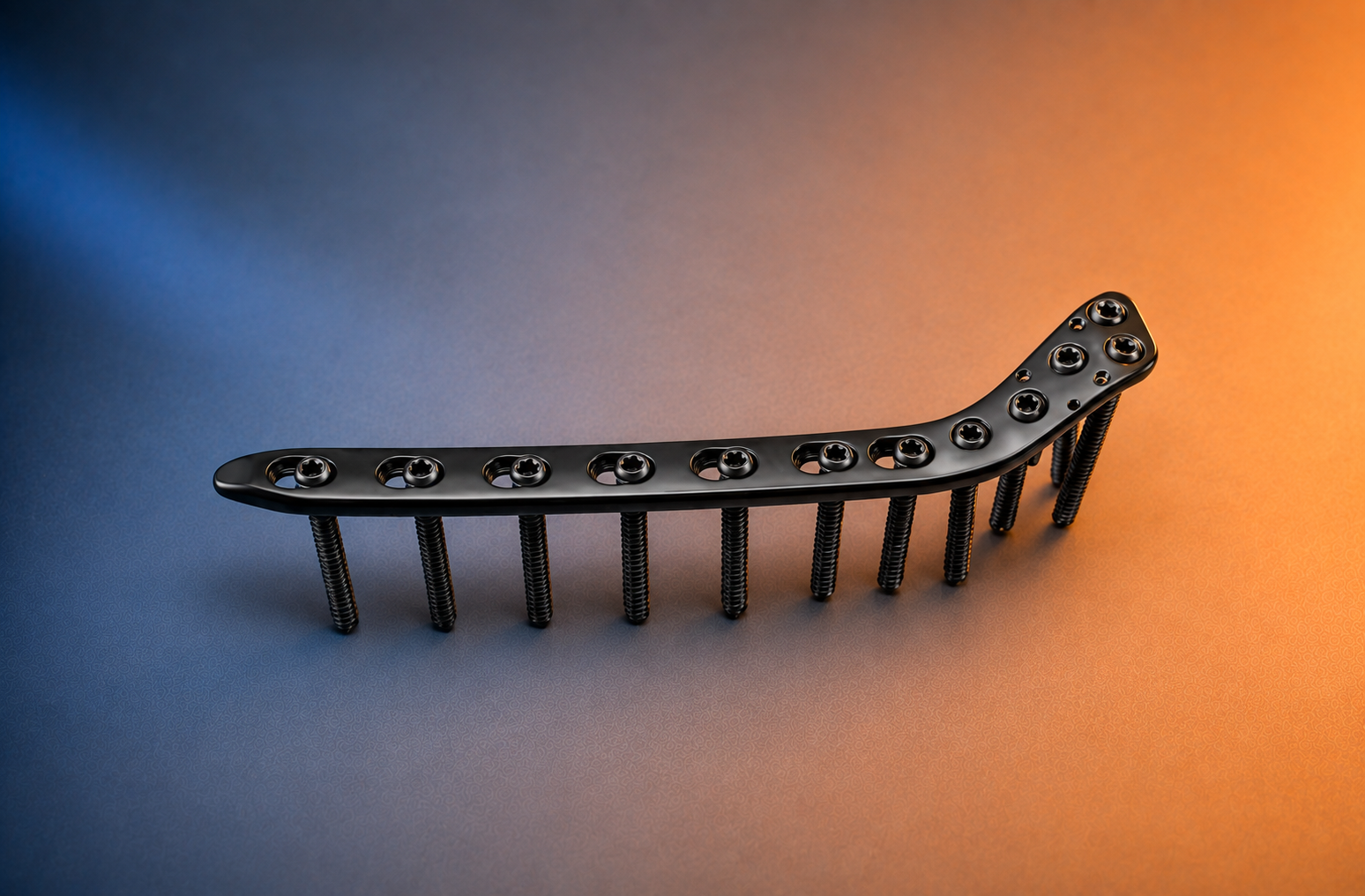

• The shaft holes accept 5.0MM locking screws in the threaded portion or 4.5MM cortical screws or 5.0MM Locking cancellous screws in the compression portion. Distal locking holes in plate head accept 5MM locking screws.
• 4.5/5.0MM Locking Plate Proximal Lateral Tibia, Right/Left allow implant placement to address the individual fracture pattern.
• Limited-contact surface reduces bone-to-plate contact and helps to preserve the periosteal blood supply.
• Choice of different lengths of plate eliminates the need to cut plates.
• Pre-contoured plate to match anatomical shape.
• Available in both Titanium and Stainless steel.
• locking plate increases construct stability, decreases risk of screw back-out and subsequent loss of reduction. It also reduces the need for precise anatomic plate contouring and minimizes the risk of stripped screw holes.

Detailed surgical technique guides, sterilization instructions and compatibility charts are available in the product catalogue or on request from our clinical support team.
