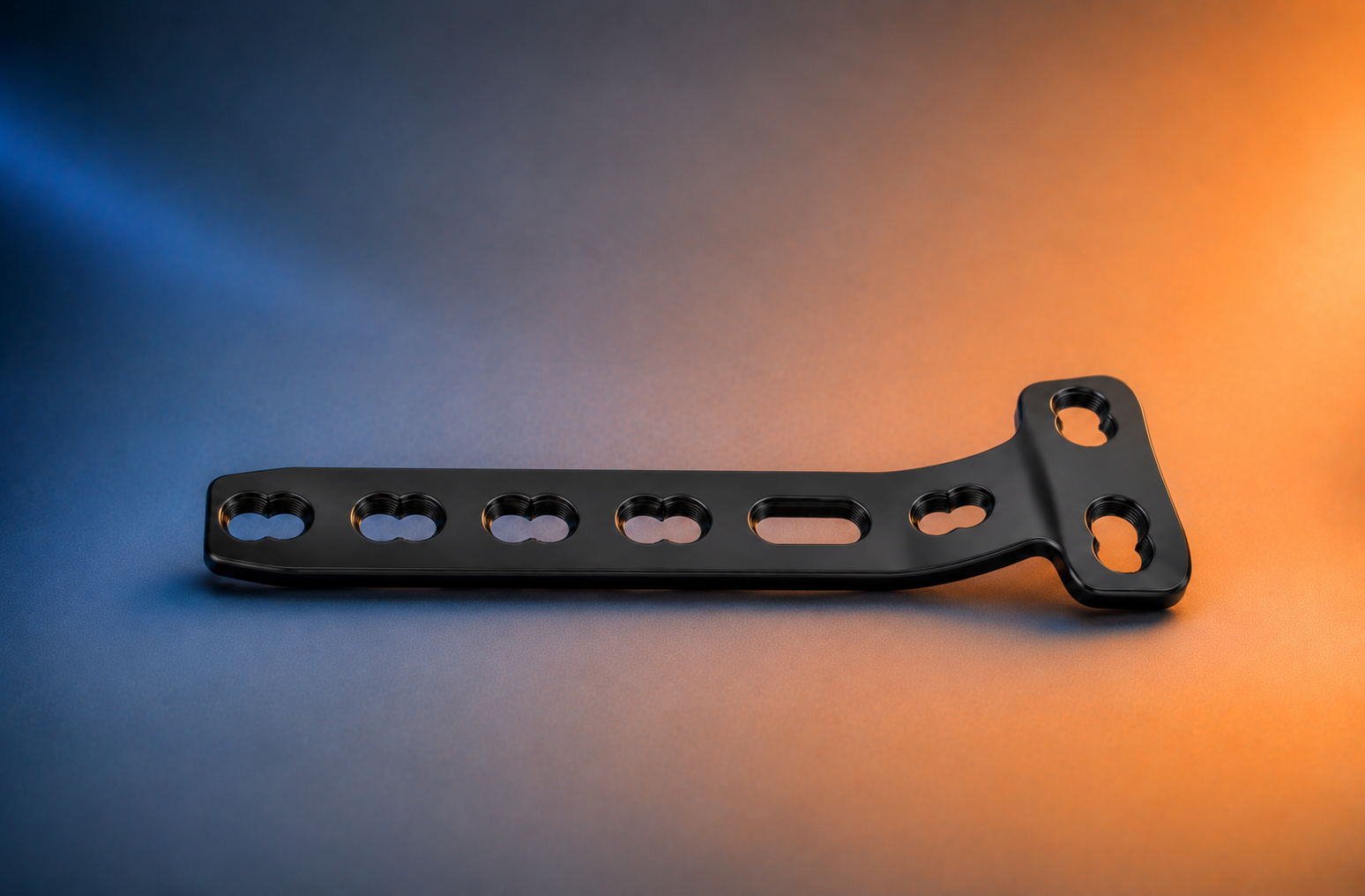

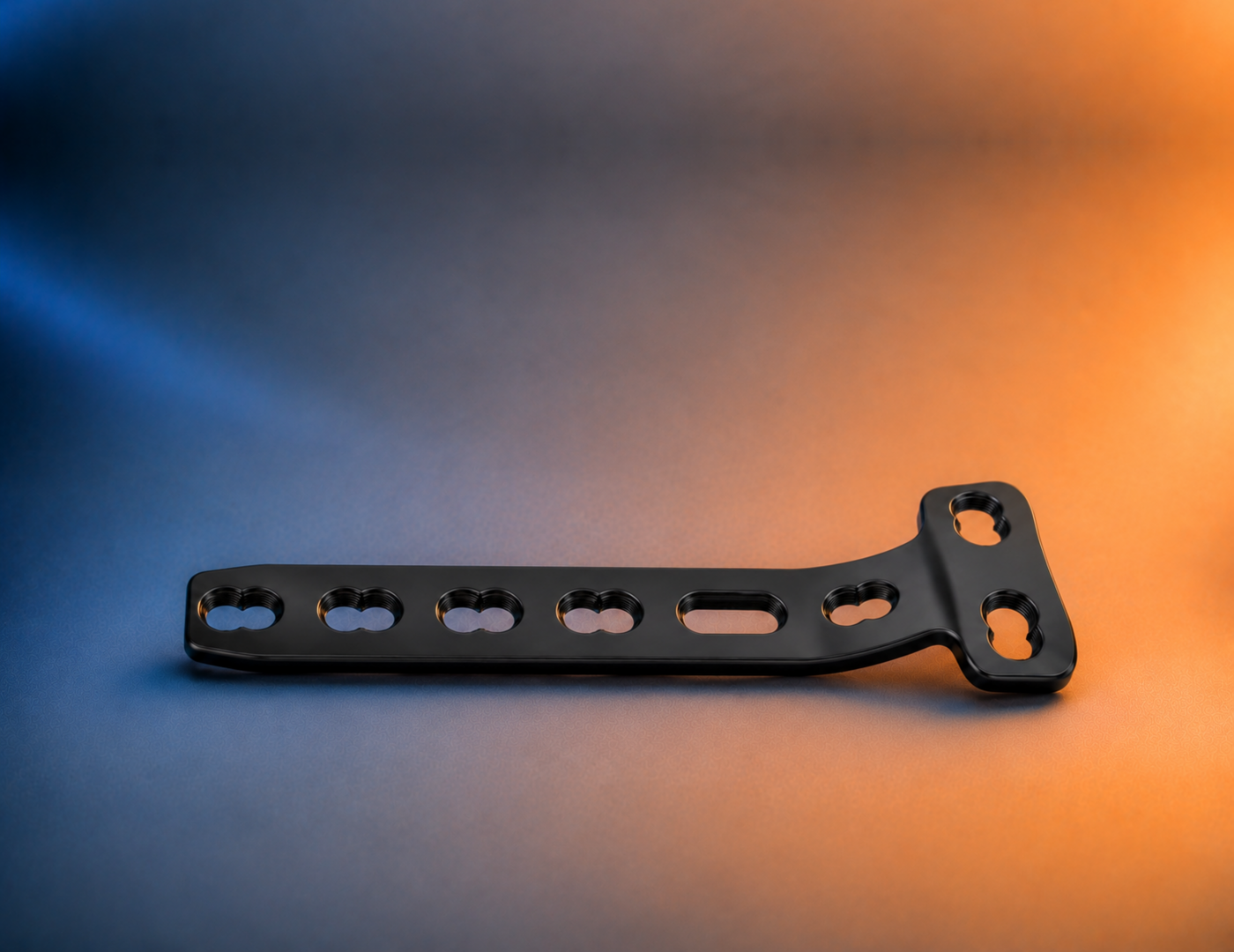

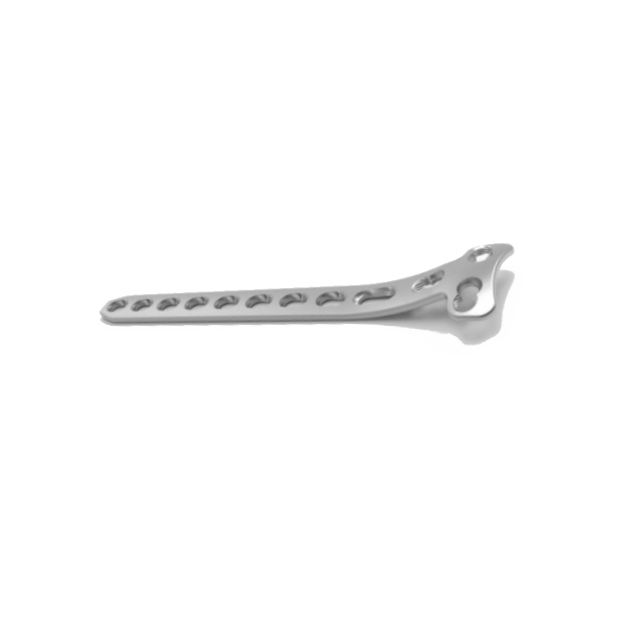

Ø5.0MM T LCP

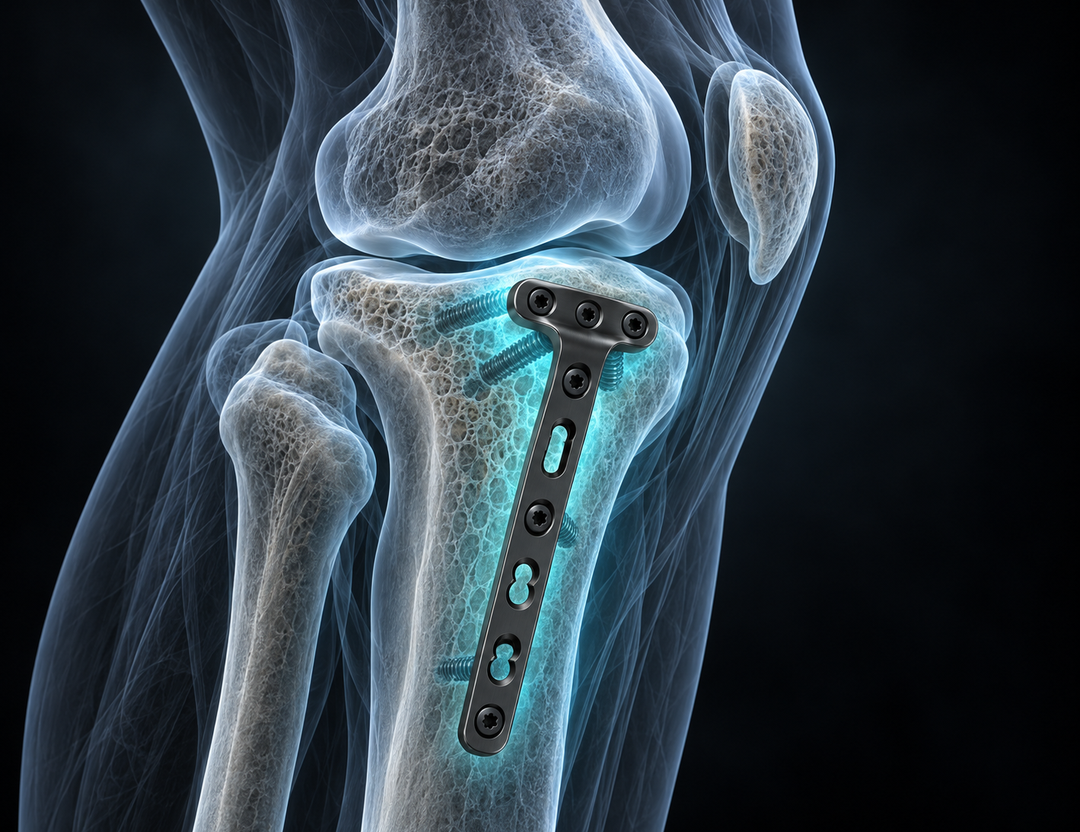

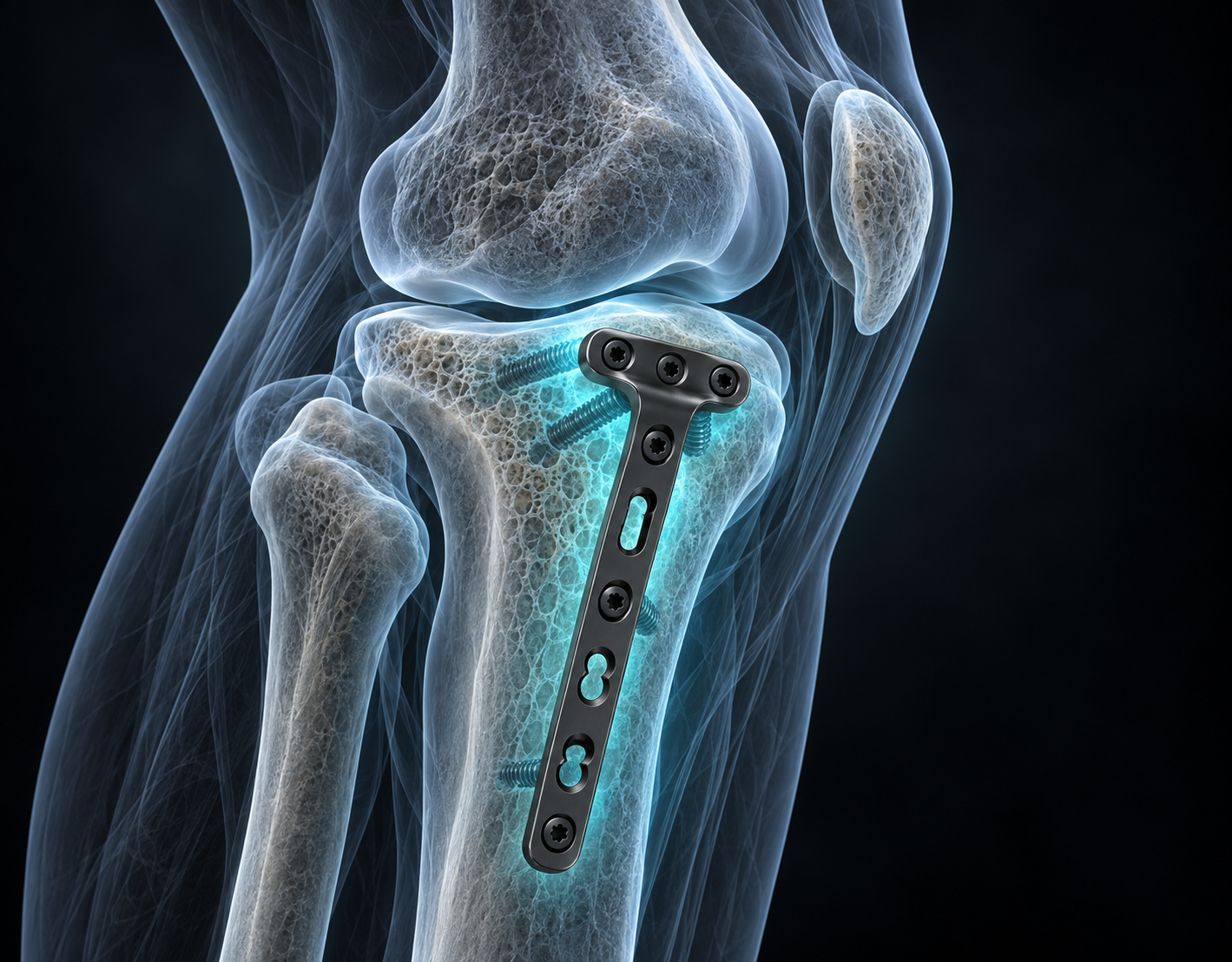

The Ø5.0mm T Locking Compression Plate (T LCP) is a specialized implant designed for fixation of metaphyseal fractures, osteotomies, and nonunions, particularly in areas where T-shaped plates provide optimal support—such as the proximal or distal tibia, distal femur, or humerus.

The plate features a T-shaped configuration that offers excellent buttressing of the articular surface and metaphyseal region, promoting anatomical alignment and stable fixation. It integrates locking compression technology, allowing for both angular stability and conventional screw compression in one implant. Compatible with Ø5.0mm locking and cortical screws, this plate ensures strong fixation, especially in comminuted or osteoporotic bone.

Manufactured from high-strength stainless steel or titanium alloy, the plate is designed with a low-profile geometry to reduce soft tissue irritation and support early mobilization.

• Metaphyseal fractures of proximal humerus, distal tibia, medial tibial plateau

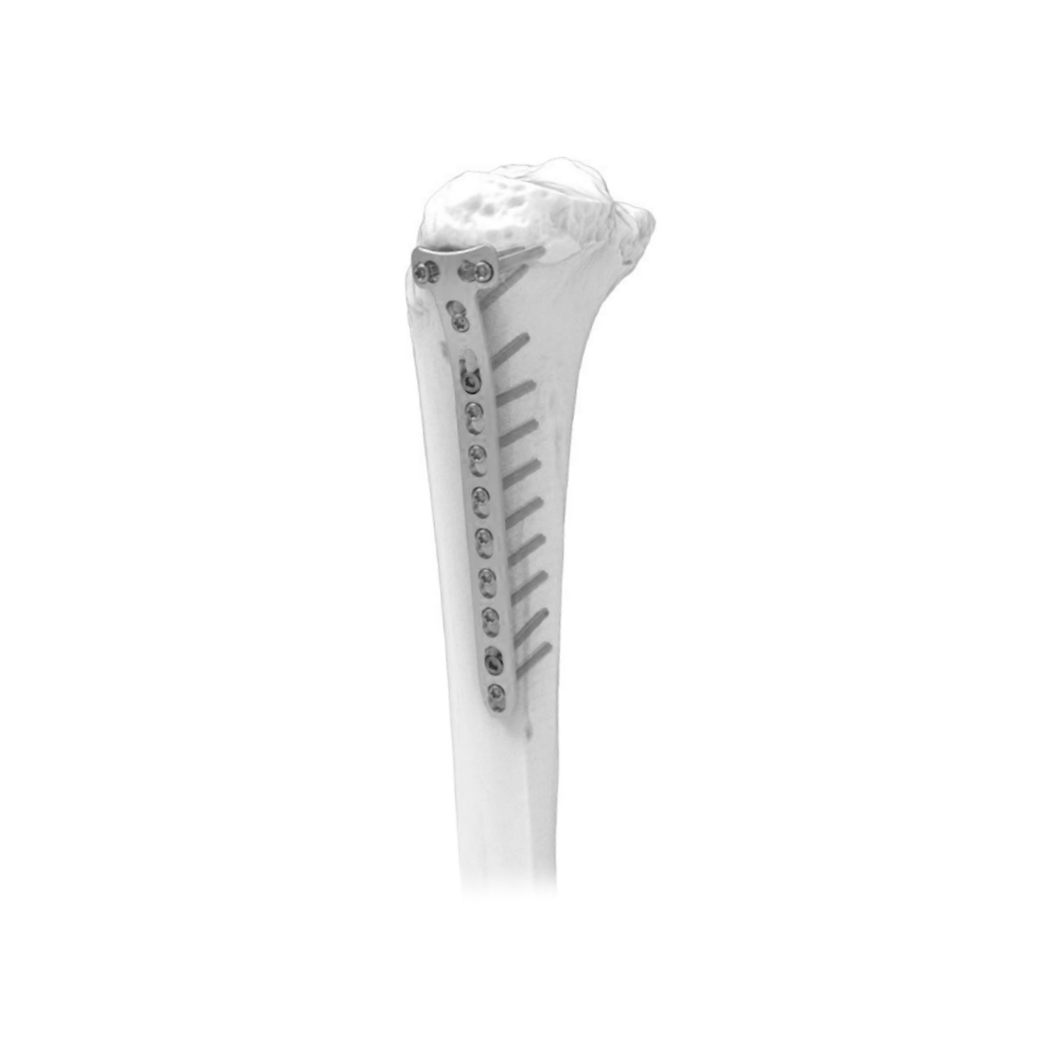

• Posteromedial fragment proximal tibia (most commonly used implant)
• Ideal to buttress small metaphyseal fragment with the diaphysis

• Metaphyseal T-segment with two combination holes for 5.0MM locking screws or 4.5MM cortical screws
• Low profile construct with minimum implant prominence or soft tissue irritation
• Shaft holes for 5.0MM locking or 4.5MM cortical screws
• Thin plate profile easy to contour & maintain post-fixation avascularity
• No undercuts present
• Long plates useful in cases of diaphyseal extension of periarticular fractures
• Available in both Titanium & Stainless steel

Detailed surgical technique guides, sterilization instructions and compatibility charts are available in the product catalogue or on request from our clinical support team.
